CY-IRFM

CY-IRFM – Description

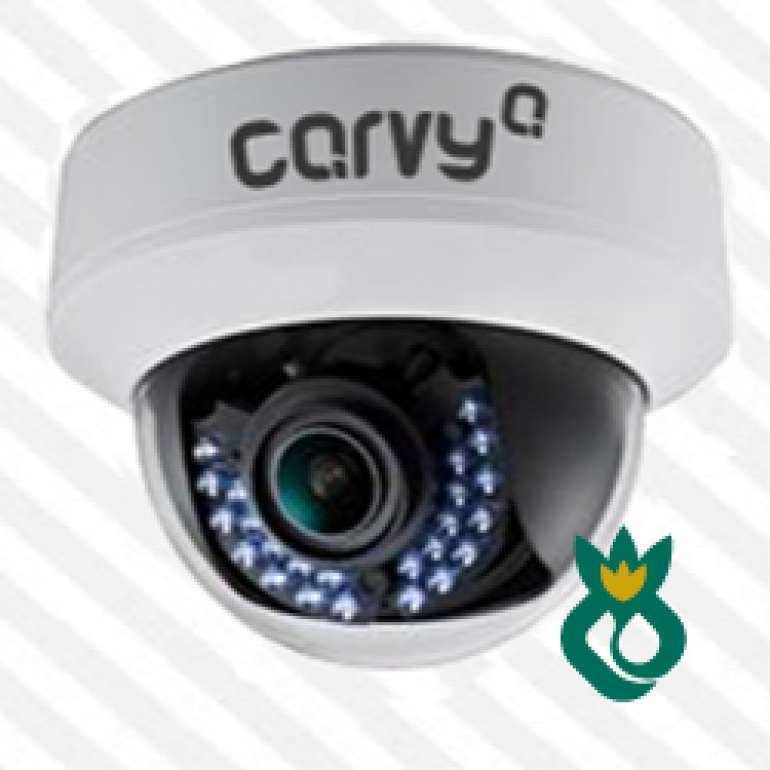

AHD or Analog High Definition is the new standard for real high definition over traditional coaxial wires. This high specification dome camera provides true 960P 1.3MP high definition video with excellent color reproduction capabilities This camera is equipped with 32 high grade LEDs which automatically operate in low lighting conditions to compensate for ambient light. Using the latest Sony 1/3″ EXMOR image sensor, the camera captures crystal clear, bright 1.3 Megapixel images day and night

• AHD/C VBS Hybrid Mode
• High Definition 960P 1.3MP
• Transmission distance up to 500m
• 1/3″ Sony EXMOR CMOS Image Sensor IMX238LQJ
• 1/3″ Sony EXMOR CMOS Image Sensor IMX238LQJ
• Built-in3.6mm lens

CY-IRFM – Precautions

AHD or Analog High Definition is the new standard for real high definition over traditional coaxial wires. This high specification dome camera provides true 960P 1.3MP high definition video with excellent color reproduction capabilities This camera is equipped with 32 high grade LEDs which automatically operate in low lighting conditions to compensate for ambient light. Using the latest Sony 1/3″ EXMOR image sensor, the camera captures crystal clear, bright 1.3 Megapixel images day and night

• DO NOT install the camera in extreme temperatures. The recommended temperature range is -10℃ to + 50℃
• DO NOT install the camera in extreme temperatures. The recommended temperature range is -10℃ to + 50℃
• DO NOT install the camera in extreme temperatures. The recommended temperature range is -10℃ to + 50℃
• DO NOT expose to abrasive liquids as it may cause long term damage to the camera
• DO NOT touch the imaging sur face of the sensor. Use a soft cloth with an alcohol wipes to clean the sur face if touched accidentally

Installation Instructions

• Unscrew the 2 angle screws on either side of the camera to loosen the centre ball
• Point the camera at the desired location and tighten the angle screws
• Mount the camera to the wall using the other 2 mounting holes.
• Connect the video and power cables

* To switch between C VBS (analog) and AHD (digital) hold the toggle switch to the left for 6 seconds

CY-IRFM – Features

This camera can capture clear images with IR function even in darkness.

It has a special design with lens separate from IR, totally avoiding problems such as flash, reflecting and whitening. Covered by the three-dimensional bracket, the lines can be hidden, which seems both elegant in appearance and safer from being cut.

CY-IRFM – Applications

This camera is equipped with infrared lights. It will automatically open infrared light to compensate ambient light in low-light environment. It applies to poor-light or any dark environment, displaying clear images in the dark.

Reaching the IP66waterproof rating, it’s applicable to a variety of open spaces, underwater monitoring (recommended depth of not more than 1.5 meters). And it’s widely used for places such as warehouse where monitoring space is no more than 20M, stairways, corridors, passageways, roads, open floor, the underground parking lot, rain pipes and other places

CY-IRFM – Problem Solutions

CY-IRFM – Specification
